Clusters

To give you an idea of the cost of repair/restoration of a 53-57 cluster, add the following:

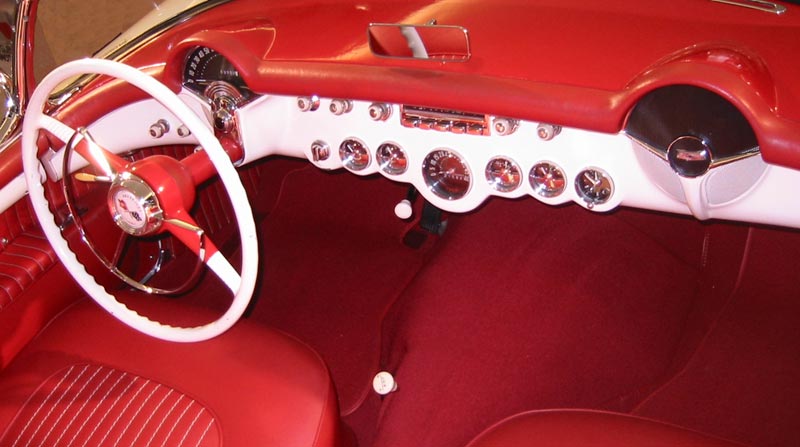

Corvette 53-57
Description Price Image
53-57 Service
Labor $475.00

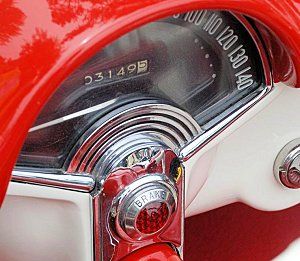

53-57 Cluster
Parts $350.00 to $400.00 (Estimate Only)
Chrome Replacement $400.00 (if needed)
Silkscreening $42.95 to 304.80 (if needed)

58-62 Service
Labor $475.00

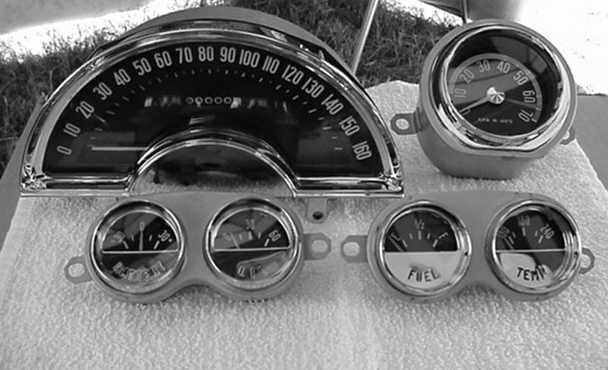

58-62 Cluster
Parts $350.00 to $400.00 (Estimate Only)
Chrome Replacement $42.95 to 227.80 (if needed)
Silkscreening $22.50 to $170.00 (if needed)


Please remove gauges from cluster housing on 58-62.
This is not part of our restoration.

Price vary according to the condition of the cluster.

Clusters
CORVETTE
53-57 (restored) Call
58-62 (restored) Call

Corvette 63-64 Repair/Restoration
To give you an idea of the cost of repair/restoration of a 63-64 cluster, add the following:
Description Price Image
63-64 Service
Labor $520.00

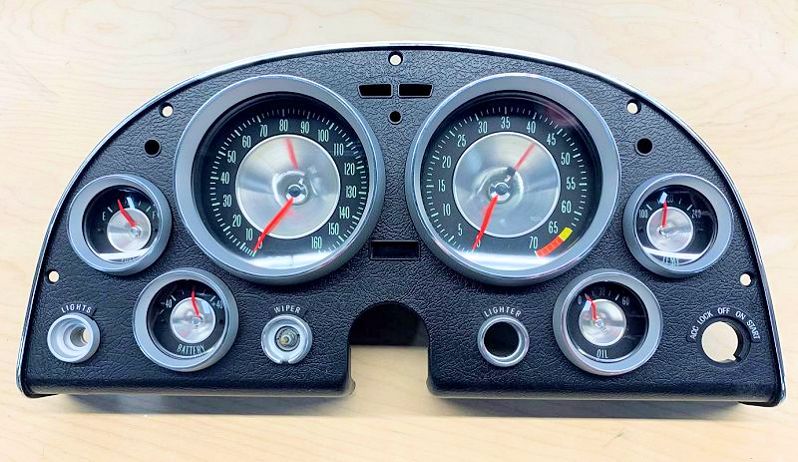

63-64 Cluster
Parts $350.00 to $500.00 (Estimate Only)
Chrome Replacement $295.00 (if needed)
Silkscreening $22.95 to 414.80 (if needed)

Corvette 65-67 Repair/Restoration
To give you an idea of the cost of repair/restoration of a 65-67 cluster, add the following:
Description Price Image
Labor $500.00
65-67 Cluster
Parts $350.00 to $400.00 (Estimate Only)
Chrome Replacement 295.00 (if needed)
Silkscreening $22.50 to $414.80 (if needed)


63-67 Clusters received into our shop are disassembled & go through the following procedure:

  1. Speedo & Tach are serviced!
  2. Small gauges are serviced!
  3. Housing is stripped & repainted factory colors, inside & out.
    1. Chroming is now available
    2. CALL FOR INFORMATION AND PRICING!
  4. Lens are polished. REPLACEMENT IS EXTRA!
    1. 63 Speedo/Tach Lens, $14.95
    2. 64-67 Speedo/Tach Lens, $14.95
    3. 63 Small Gauge Lens (set of 4), $26.95
    4. 64-67 Small Gauge Lens (Ea.), $8.50
    5. 65-67-Tech-Lens
  1. Odometer Lens is polished. REPLACEMENT IS EXTRA!
    1. 63-67 Odometer Lens, $12.95
  2. Odometer cushions are usually replaced.

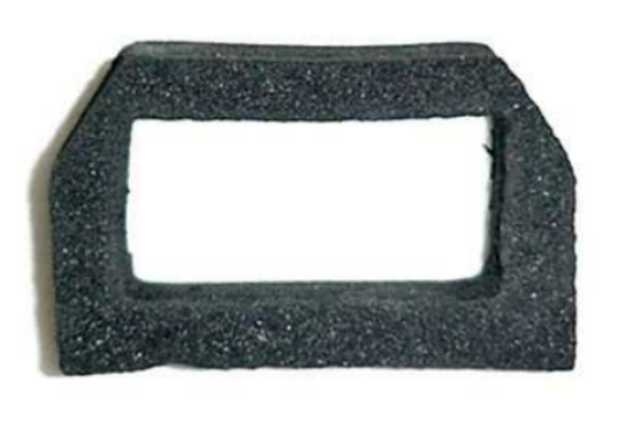

    1. 65-67 Odometer cushion, $3.75
  3. Blinker lens are usually replaced.
    1. 63-67 Blinker lens set, $3.50
  4. Instrument clusters are reassembled & inspected for quality, appearance and function.
Dash Cluster Screw Set, $5.95

Clusters
CORVETTE
63 (restored) Call
64 (restored) Call
65 (restored) Call
66-67 (restored) Call

Clusters Restoration

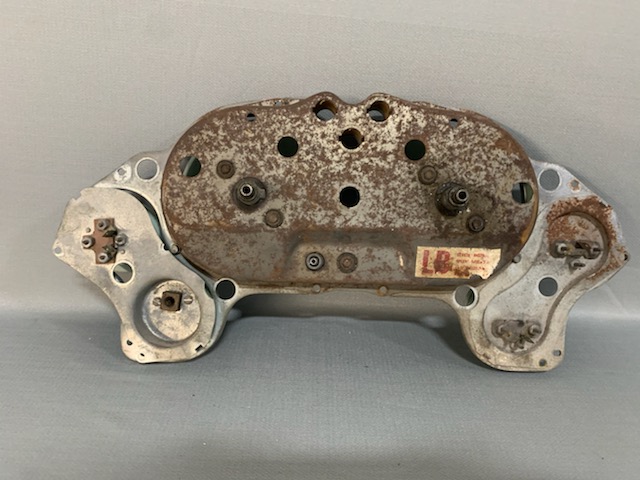

65-67 Cluster back before restoration.
65-67 Cluster back before

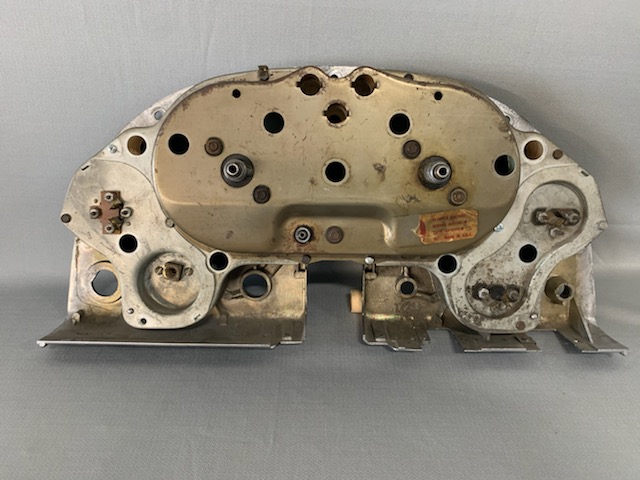

65-67 Cluster back with housing before restoration. This one is actually pretty good condition. There is rust, but that can be bead blasted back to a like new condition.
65-67 Cluster back with housing before

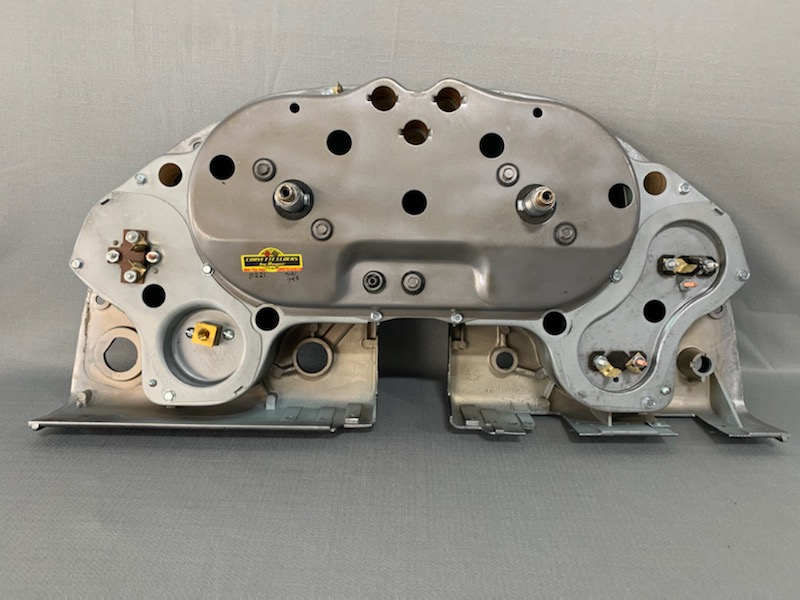

65-67 Cluster back with housing after restoration. The back has a clear satin finish that will last for years.
65-67 Cluster back with housing after
65-67 Cluster housing frame before restoration.
65-67 Cluster housing frame before

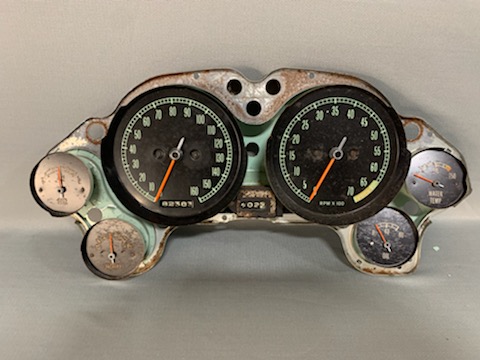

65-67 Cluster (interior view) before restoration.
65-67 Cluster before
65-67 Cluster (interior view) after restoration.
65-67 Cluster after

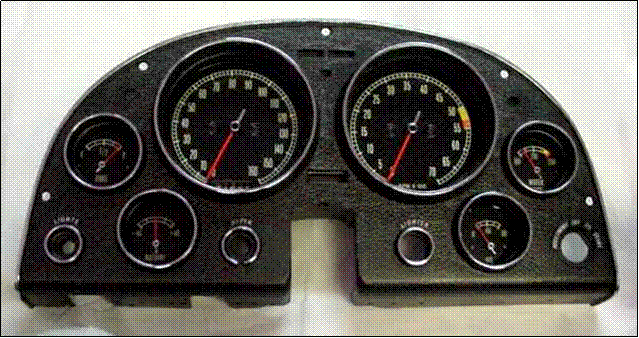

65-67 Cluster ready for installation.
65-67 Cluster completed


68-82 Corvette Center Console

  1. With housing & Mechanical clock Repair, $450.95 Plus Parts
  2. PARTS ESTIMATE: $60.00
  3. With housing & Quartz Conversion, $450.95 Plus Parts
  4. PARTS ESTIMATE: $60.00
  5. Without housing & Mechanical Clock Repair, $419.95 Plus Parts
  6. PARTS ESTIMATE: $60.00
  7. Without housing & Mechanical Clock Repair, $419.95 Plus Parts
  8. PARTS ESTIMATE: $60.00

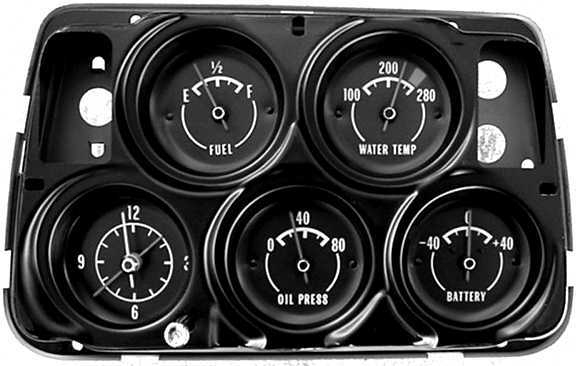

78-82 Cluster

68-82 Center Console Clusters received into our shop are disassembled & go through the following procedure:

  1. All parts are cleaned & inspected for wear.
  2. Defective parts are replaced.
    1. PARTS ARE EXTRA!
    2. PARTS ESTIMATE: $60.00 – $80.00
  3. Faces are cleaned & polished. SILKSCREENING IS EXTRA!
    1. Battery 68-82, $22.50
    2. Fuel 68-82, $22.50
    3. Oil 68-82, $22.50
    4. Temperature 59-65, $22.50
    5. Temperature 68-82, $27.50
  4. Pointers are repainted. REPLACEMENT IS EXTRA!
  5. Lens are polished. REPLACEMENT IS EXTRA!

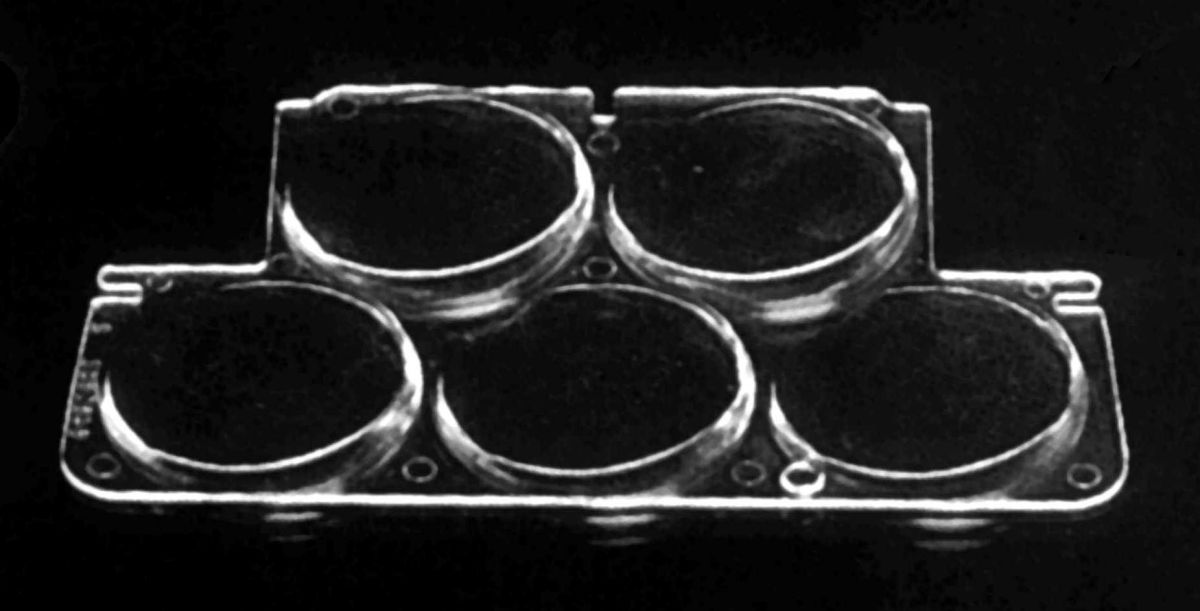

    1. 68-82 Gauge Cluster Lens, $24.95
  1. Housing is repainted factory colors. REPLACEMENT IS EXTRA!
  2. 65-67-Tech-Lens
  3. Clock is repaired or converted to quartz, whichever you specify.
  4. Gauges are tested & calibrated to factory specifications.
  5. Console clusters are reassembled & inspected for quality, function, & appearance.
