Tachometers

To give you an idea of the cost of repair/restoration of a 53-82 techometer, add the following:
Corvette
Description Price Image
53-58 Service
Labor $159.95 58 Tachomter (front)
58 Tachomter (front)
58 Tachomter (front)

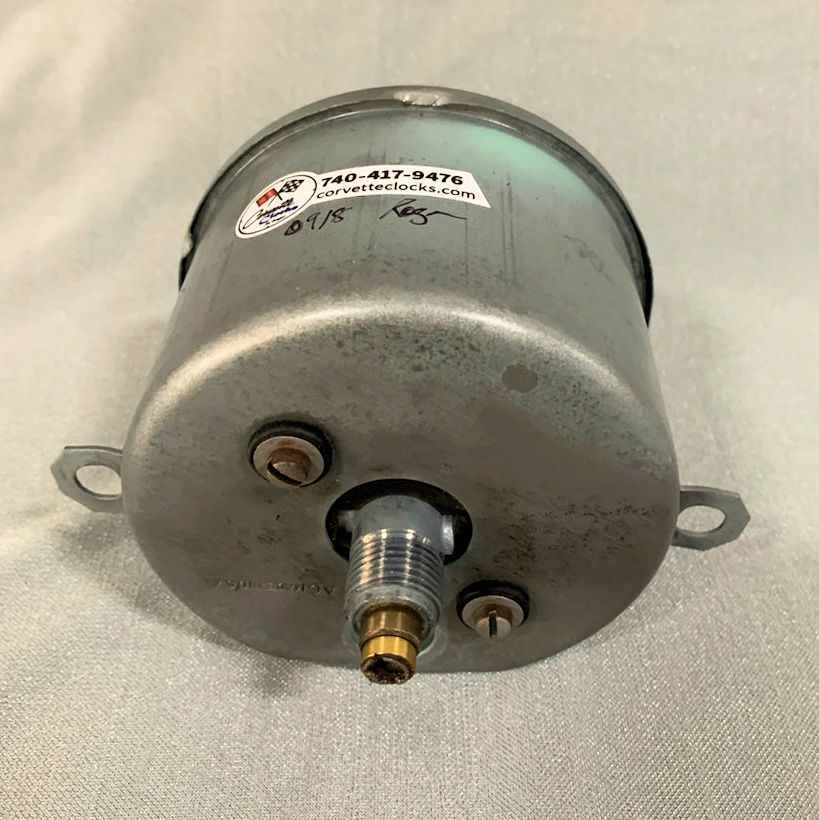

58 Tachomter (back)
Parts $200.00 to $250.00 (Estimate Only)
Chrome Replacement $59.95 (if needed)

59-62 Service

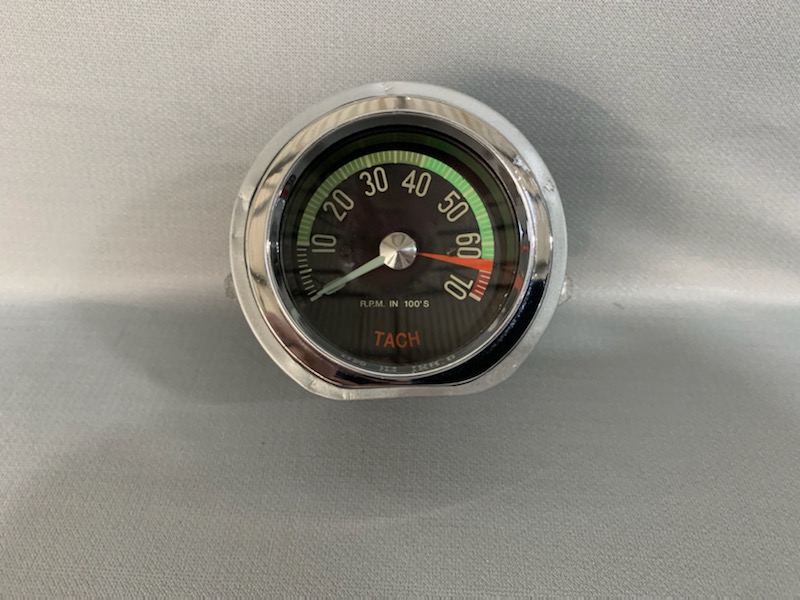

Labor $159.95 61-62 Tachometer
61-62 Tachometer
Parts $200.00 to $250.00 (Estimate Only)
Chrome Replacement $59.95 (if needed)
Silkscreening $47.50 (if needed)

63-67 Service
Labor $149.95 65-67 Tach
65-67 (Red Line)
Parts $125.00 to $175.00 (Estimate Only)
Silkscreening $47.50 (if needed)

68-74 Service
Labor $149.95
Parts $125.00 to $175.00 (Estimate Only)
Silkscreening $47.50 (if needed)

75-82 Service (Electronic)
Labor $209.95
Silkscreening $47.50 (if needed)


TACHOMETERS received into our shop are disassembled & go through the following procedure:

  1. All parts are cleaned & inspected for wear.
  2. Worn parts are replaced. PARTS ARE EXTRA!
  3. Faces are cleaned & polished. SILKSCREENING IS EXTRA!
    1. 63-82 Corvette silkscreening, $47.50

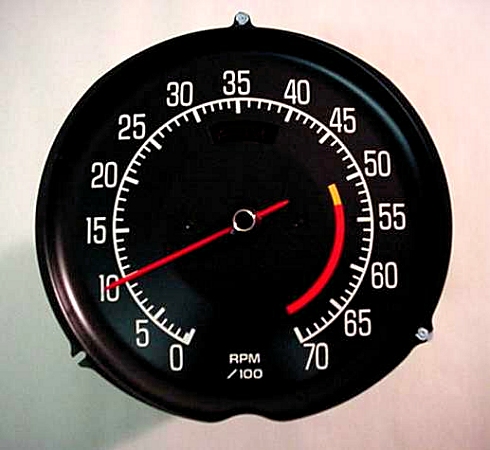

    2. 72-74 Tach
  4. Red Lines are repainted. REPLACEMENT IS EXTRA!
    1. 59-82 Corvette, $47.50
  5. Pointers are repainted. REPLACEMENT IS EXTRA!
    1. 53-58 Corvette, $30.00 (Replacement)
    2. 59-62 Corvette, $30.00 (Replacement)
    3. 63-64 Corvette, $49.95
    4. 65-67 Corvette, $20.00
    5. 68-74 Corvette, $18.95
    6. 53-62-Tech-pointer
  1. Lens are polished. REPLACEMENT IS EXTRA!
    1. 53-54 Corvette Tach Face with numbers, $34.95
    2. 55-57 Corvette Tach Face with numbers, $34.95
    3. 55-58 Corvette Inner Tach Face with dots (8,000 RPM), $28.95
    4. 58 Corvette Tach Face with numbers (6,000 RPM), $49.95
    5. 58 Corvette Tach Face with numbers (8,000 RPM), $49.95
    6. 58 Corvette Inner Tach Face (8,000 RPM), $37.95
    7. 59-62 Corvette Tach Lens, $14.95
    8. 63 Corvette Tach Lens, $14.95
    9. 64-67 Corvette Tach Lens, $14.95
    10. 68-77 Corvette Tach Lens, $19.95
    11. 65-67-Tech-Lens
  2. Bezel is polished on 53-62 REPLACEMENT IS EXTRA!
    1. 53-62 Bezel is polished on 53-62, $59.95
    2. 58-62-Speedo-Bezel
  3. Tachometers are reassembled, tested, & calibrated to factory specifications!

Tachometers for Sale
CORVETTE
53-62 (restored) Call
63 (either red line) (restored) Call
64 (either rec line) (restored) Call
65-67 (either red line) (restored) $195.00
68-71 (either red line) (restored) $195.00
72-74 (either red line) (restored) $195.00
75-77 (electronic) (restored) $195.00
78-82 (electronic) (restored) $195.00

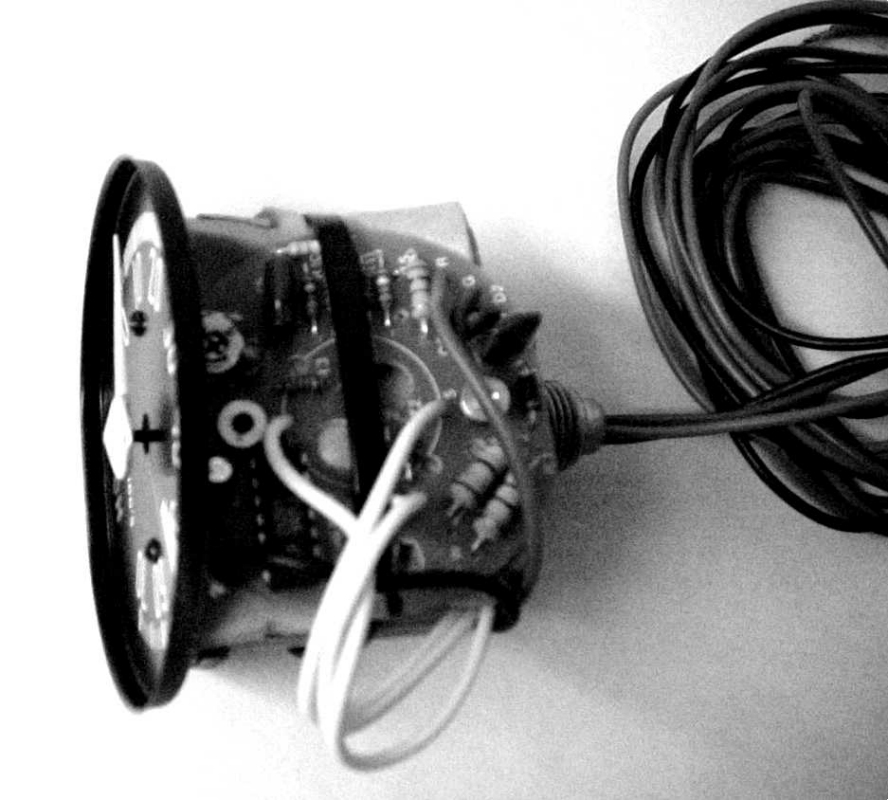

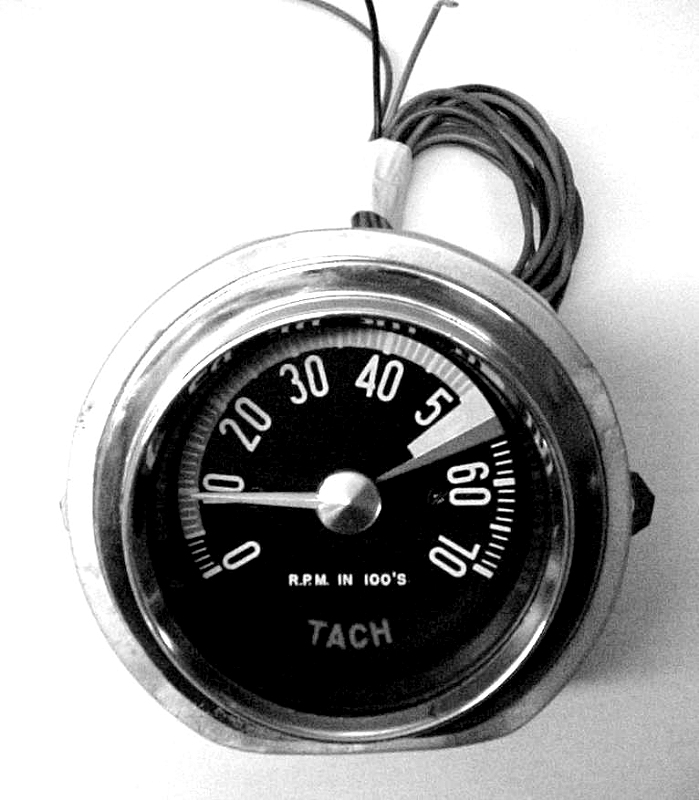

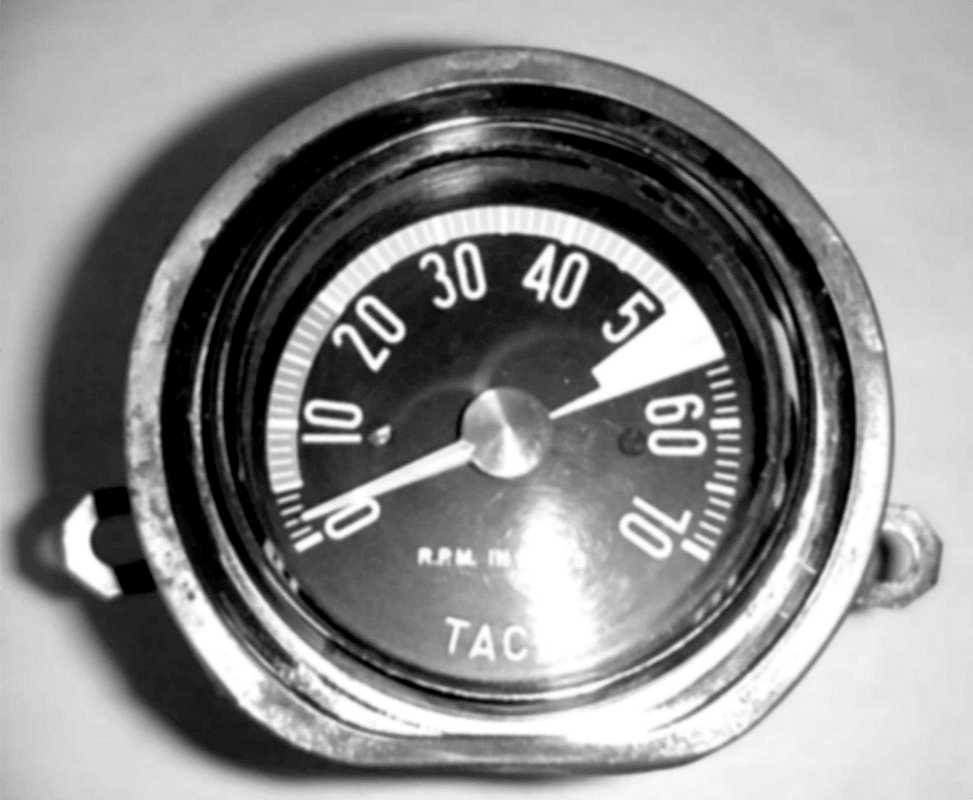

53-82 TECHOMETER CONVERSIONS (Corvette)

  • 53-74 Conversion from mechanical to electronic, $269.95 Plus parts
  • 75-82 Conversion from mechanical to electronic, $209.95 Plus parts


68-82 Corvette Center Console

Electronic Conversion Tachometers for Sale
53-62 Electronic Tach Call

63-64 Electronic Tach N/A

65-67 Electronic Tach $325.00
68 Electronic Tach $325.00
69-71 Electronic Tach $325.00
72-74 Electronic Tach $325.00

77 Electronic Tach $350.00
78-82 Electronic Tach $350.00
LS Hook-up is:

RED: switched 12 volt

BLACK: ground

GREEN: signal (connect to WHITE tach lead that comes out of EBM)-MSD. Pick up is not required.

Standard Hook-up is:

RED: switched 12 volt

BLACK: ground

GREEN: signal (connect to negative side of coil).

HEI Hook-up is:

RED: switched 12 volt

BLACK: ground

GREEN: signal (connect to Tach connection on HEI cap).
